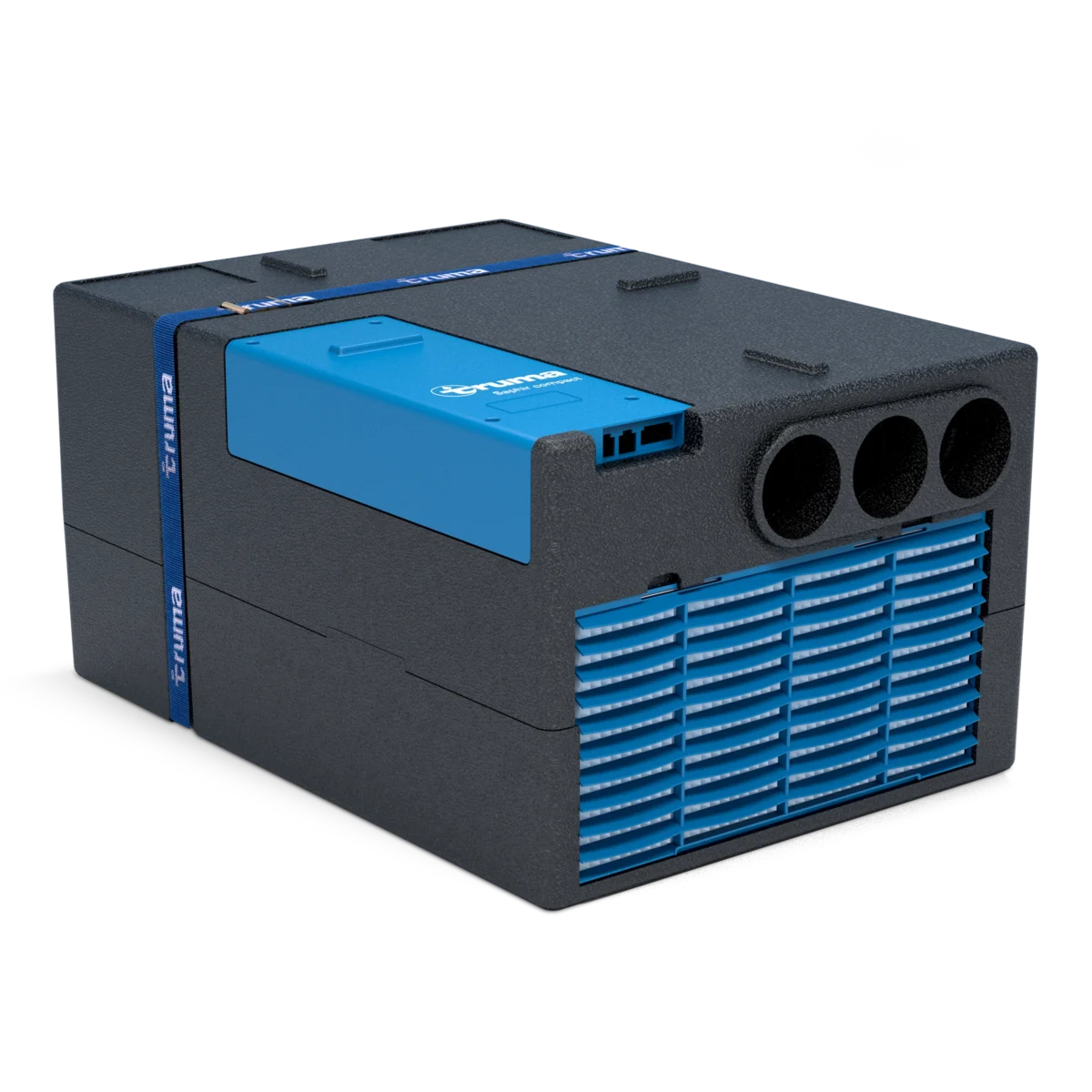

Saphir compact is a storage compartment air conditioning system that is especially well-suited for small to medium-sized caravans and motor homes. The system not only cools the air, but also dehumidifies and cleans it. For this purpose, there are fluff and particle filters on the front of the device. The air conditioning system is lightweight, extremely compact and very economical to run.
The Saphir compact storage compartment air conditioning system is ideal for small and medium-sized caravans up to 5.5 metres long.

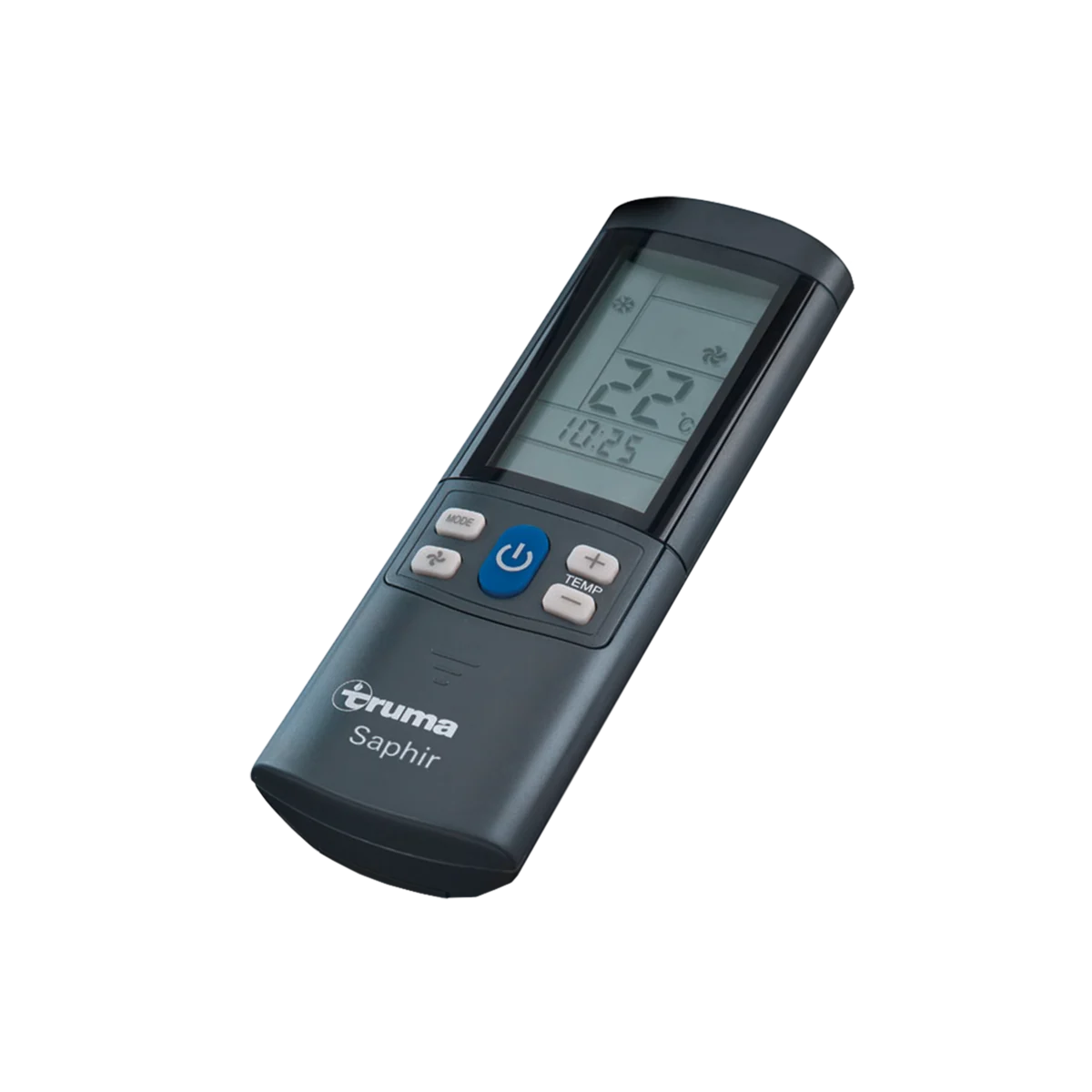

Use the remote control to switch the Truma Saphir compact on and set the desired room temperature.
There are various options for distributing cool air throughout the vehicle. The eco solution is simple, inexpensive and quick to install.

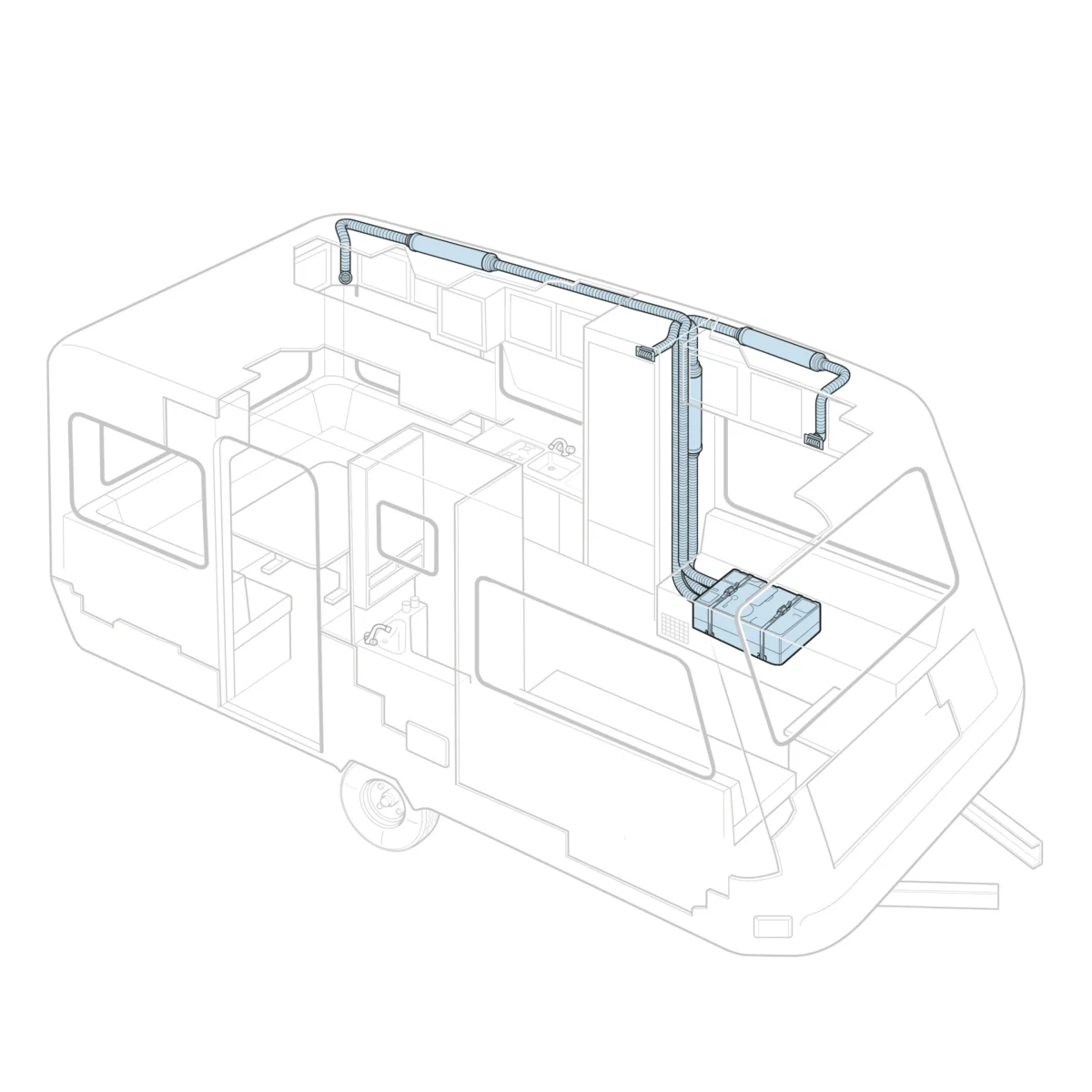

The comfort solution directs the cool air from the air conditioner into a cupboard upwards and distributes it evenly throughout the vehicle.
The luxury solution provides extreme living and sleeping comfort with the individually extendible cold air system.
Saphir compact is a storage compartment air conditioning system that is especially well-suited for small to medium-sized caravans and motor homes. The system not only cools the air, but also dehumidifies and cleans it. For this purpose, there are fluff and particle filters on the front of the device. The air conditioning system is lightweight, extremely compact and very economical to run.

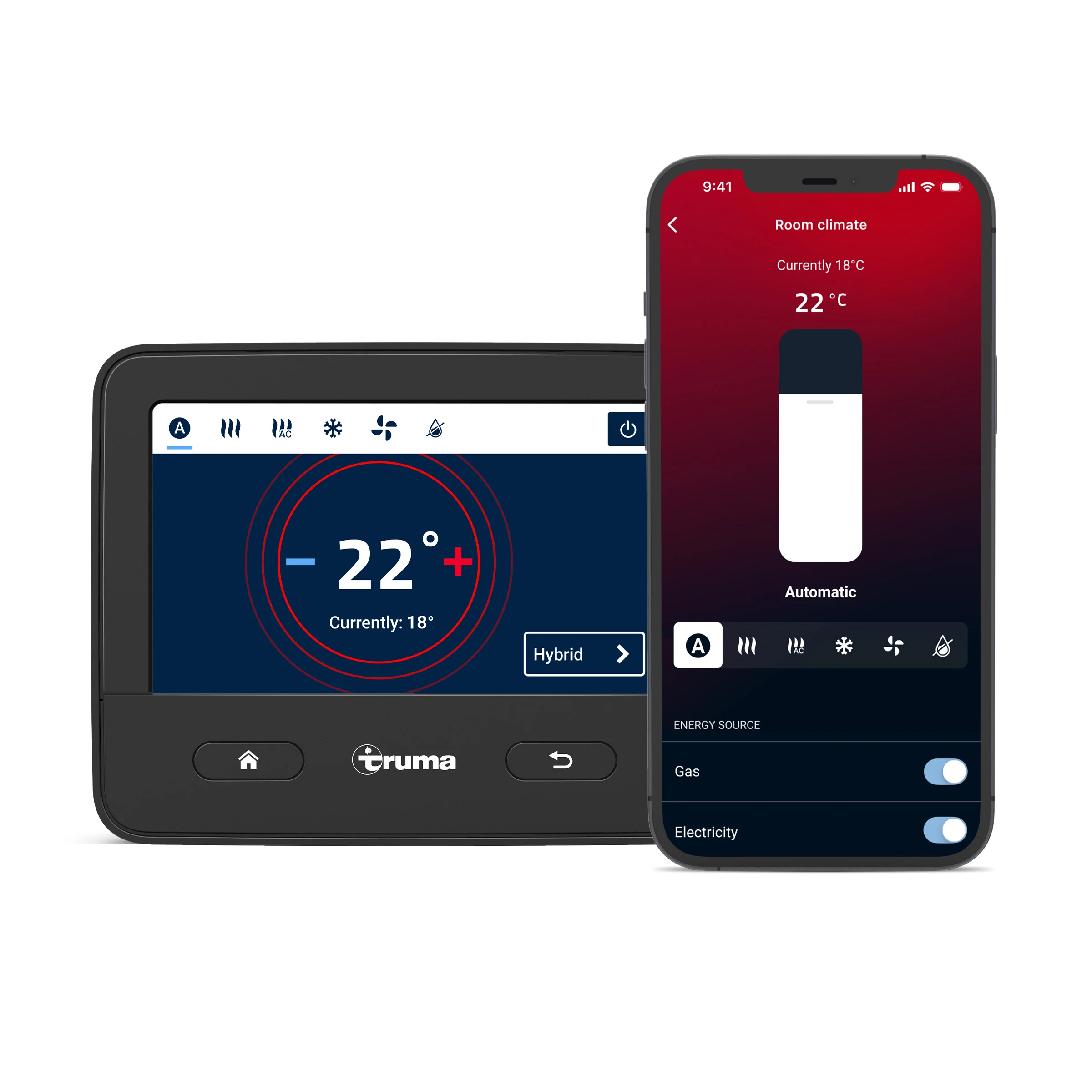

Use the convenient remote control to adjust the storage compartment air conditioning system. Saphir compact systems can also be controlled with the digital CP plus iNet ready control panel. If, in addition to a Truma air conditioner, you also have a Combi heater in your vehicle, you can use automatic climate control. Both appliances are then synchronised with each other automatically until the desired temperature is reached. The digital control panel can also be extended with the Truma iNet Box. This allows you to control all TIN bus-capable Truma appliances via the Truma App.
Saphir compact is installed centrally in a storage compartment, such as in a storage bench, so that the cold air is distributed evenly throughout the entire caravan or motor home.
Our guide will help you find the right caravan air condition.
Why does a Truma air conditioning system not have the same cooling output as a car air conditioning system?
In many cases, air conditioning systems are used in cars for just 20 to 30 minutes. A comfortable temperature of about 23 °C should be reached within a very short time. Because cars often have dark colours inside and outside and angled windows, such as the windscreen, they heat up very quickly. This is why car air conditioning systems are equipped with a high cooling output (6 to 8 kW). They are much more powerful, as the compressor of the air conditioning system is driven by the car’s engine. This explains why the engine loses power when the air conditioning system is switched on in the car.
On the other hand, RVs are often used for several hours. The air conditioning system is also used over a long period (while driving or at the camp site). Light external colours and steep windows reduce heating of the vehicle compared to cars. The cooling output of air conditioning systems in RVs is generally much lower, as they are electrically operated and the power supply is limited. This is why a high level of energy efficiency, which ensures optimum cooling output with low power consumption, is essential.
Our air conditioning system can produce a maximum temperature difference of 10°C under optimum conditions, such as when the vehicle is in shadow, is darkened, windows and skylights are closed and humidity is low.
Can the cold air distribution system of the Truma Saphir air conditioning system be connected to existing warm air ducts?
No.
Warm air ducts offer no insulation to protect against the build-up of condensation. Condensation would form on the outer cardboard layer of the warm air ducts when the Truma air conditioning system is operated. This would damage the ducts and storage compartments.
How do I cool my caravan or motor home especially effectively?
You can keep a cool head at any temperature by following the tips:
What must I consider as regards maintenance of Truma air conditioning systems?
Truma air conditioning systems have a closed cool air circulation system. As opposed to cars, no coolant has to be replenished or replaced.
For Saphir air conditioning systems we recommend that you clean the fluff filter twice per year and replace it if necessary. We recommend that you replace the particle filter every year at the beginning of the season.
With Aventa air conditioning systems we recommend that you replace the air filter each year or as required.
Parts waranty for air conditioning systems and Mover from the manufacturer Truma
Warrantor and warranty period
In connection with the manufacturer’s warranty of two years, the Truma Partner grants a parts warranty to air conditioning systems and Mover from Truma (“the product”) for an additional three years, so for years 3, 4 and 5 from the date of purchase, under the following conditions.
The warrantor is the Truma Partner, from whom the respective product was acquired and professionally installed.
If repair work is undertaken within the scope of the warranty, the warranty period with regard to the repaired or replaced parts does not re-commence, but the original warranty period continues.
Warranty requirements and extent of the warranty
The parts warranty applies to product defects, which can be attributed to material or production faults.
A claim can only be made in relation to this part warranty upon submission of this certificate, the original receipt and specification of the serial number for the product, for which this warranty claim shall be lodged.
Spare parts costs are covered by this warranty. Costs are not covered for installation and removal, dismantling of furniture or body parts as well as transport and road costs, travel expense or other costs, which are not spare parts costs.
The Truma Partner shall decide on the type of repair.
Replaced (spare) parts shall become the property of the warrantor.
Exceptions
The warranty does not provide cover:
Miscellaneous
Further claims, in particular claims for damages by the end customer or a third party are ex- cluded.
Contractual or legal claims of the end customer against the Truma Partner, such as warranty claims or claims for damages are not affected by this parts warranty.
The provisions of the Product Liability Act remain unaffected by this.
